Teacher Microphone Card

VSC Classroom Card CC-AE-001 · Audio Enhancement XD Teacher Microphone · Rev 1.1 · Oct 2026

A half-sheet landscape (8.5 × 5.5 in) card to leave in every classroom at install: what each button on the XD Teacher Microphone does on the front, student mics and quick fixes on the back.

📄 View or download this guide as a PDF

Click the PDF icon below to open it right here in your browser. In the viewer, use Download (top right) to save a copy, or the printer icon to print it.

🖨️

Printing: use the 2-up print sheet below: two cards stacked on one letter-size sheet (portrait), duplex flip on long edge, then cut across the middle (tick marks at the left and right edges). Cardstock or lamination recommended.

🎨 Branding it for a district

The card is built from a template, so the top bar, accent color, logo and help line can match a district. VSC keeps the red SAFE alert band the same on every version so it is always recognizable. To make a district version, send VSC Operations the district name, logo (PNG), colors and the help line staff should call. A sample in district colors is attached here.

👀 Preview

Card front Card back

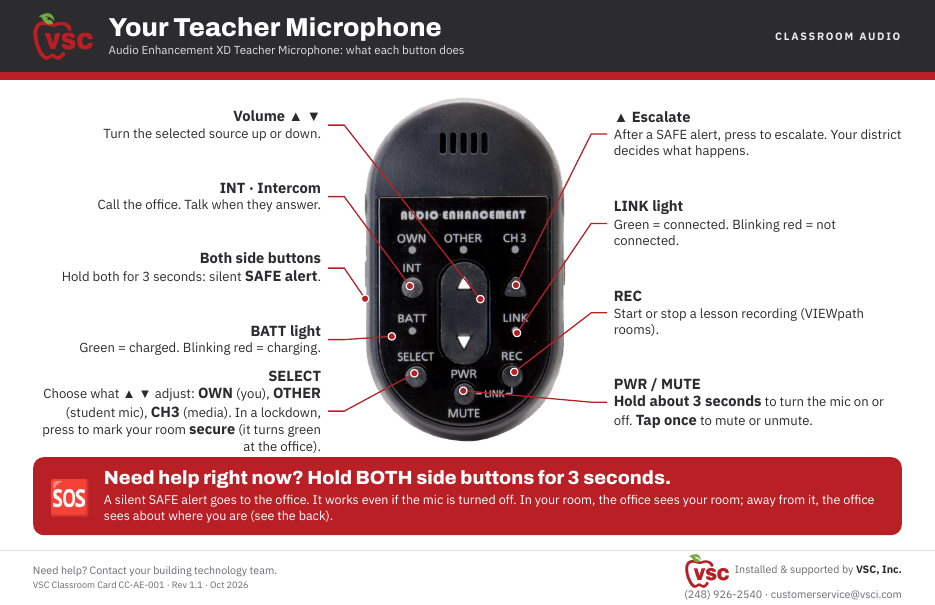

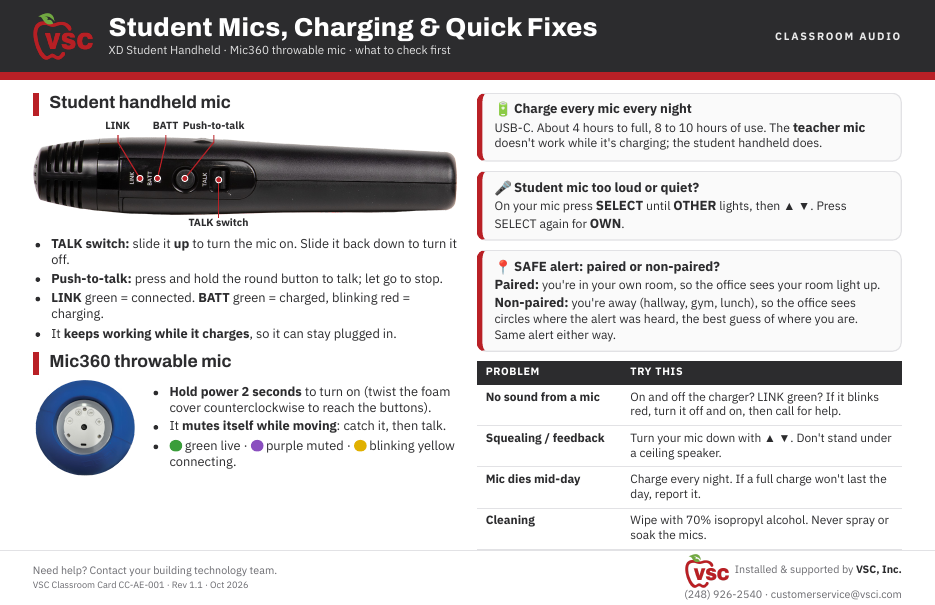

Front: each teacher mic button, with leader lines to the button, and the SAFE alert. Back: student handheld, Mic360 and quick fixes.

For linking, charging and cleaning details, see 🎤 Link, Charge & Care for Classroom XD Microphones (QR-AE-013).

📚 Sources & credits

Card design and field notes: Brad Roy, VSC Director of Operations
Audio Enhancement: XD Microphone QSG DC-40545.0526, XD Teacher Mic SS DC-40440.0924, New XD Teacher Mic Difference Flyer DC-41050.0924, XD Receiver manual DC-41037.1223 (SAFE side buttons), XD SAFE Badge QSG DC-41208.1025 (▲ escalate), XD Student Mic SS DC-40441.0124, Mic360 2.0 QSG DC-41147.0426, Microphone Sanitizing Guide DC-40810.02. Product photos: Audio Enhancement.
